Mac OS X Tiger PPP settings

This tutorial will show you how to set up a PPP dialup connection in OS X Tiger (10.4)

  1. Click on the Apple menu and choose "System Preferences."

    Click on the Apple menu and choose System Preferences

  2. Click on the "Network" preference pane.

    Click on the Network pane

  3. Select "Internal Modem" to see your dialup settings.

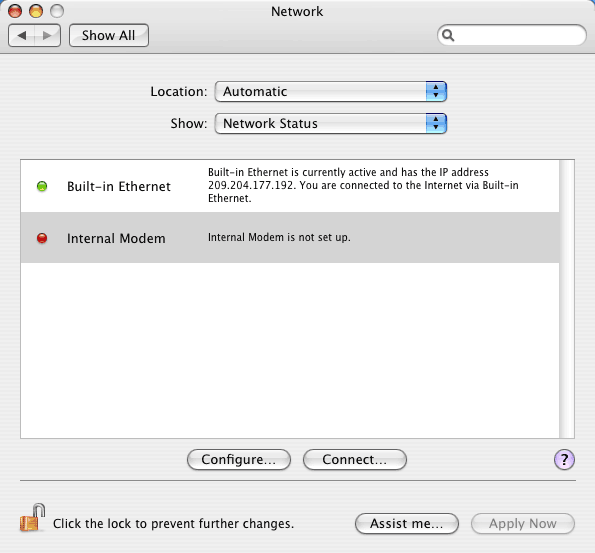

    Select Internal Modem

  4. Now switch from the "Network Status" screen to the "Internal Modem" screen by choosing "Internal Modem" in the pulldown menu labeled "Show."

    The first thing you'll see will be the "PPP" settings.

    • the Service Provider field does not need to be filled out unless you have more than one Internet Service Provider
    • "Account Name:" should be your Majornet username (also known as your login name).
    • "Password:" should be the password which corresponds to your username
    • "Telephone Number:" should be the telephone number you received from the local dialup finder or from Majornet Technical Support when you signed up for the account
    • "Alternate Number" can be another local number you chose from the local dialup finder, or an alternate number you were given by Majornet Technical Support staff. NOTE Always make sure you check with the operator before dialing that the number is not a toll call
    • Check the "Save Password" box if you do not want to type in your password everytime you start a Dialup connection.

    When you have filled in that information, click on "PPP Options" to look at advanced options.

    Use the PPP settings recommended above

  5. The PPP Options window which folds down contains many advanced options. Click on the "Help" menu on the menubar at the top of the screen to learn more about them. Press "Ok" when you are done with the PPP Options.

    Click on the Help menu to get help with any part of the Mac OS X operating system

  6. Click on the heading labeled "TCP/IP" to setup the TCP/IP settings.
    • "Configure IPv4:" should be set to "Using PPP"
    • IP Address, Subnet Mask, and Router will be blank until your computer connects to Majornet and obtains that information using PPP
    • Majornet does not currently support IPv6 for PPP. You do not need to change anything in the "Configure IPv6" screen.

    Configure the TCP/IP settings according to the instructions above

  7. Click on the "Proxy" settings next. Majornet does not run any proxies that need to be accounted for.

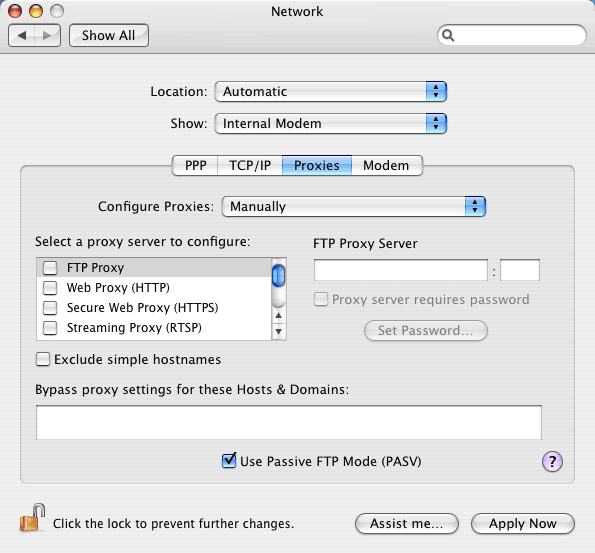

    No proxies

  8. Click on the "Modem" settings next.
    • "Modem:" is almost always some kind of Apple Internal Modem
    • "Enable error correction and compression in modem" should be checked
    • "Wait for dial tone before dialing" should be checked
    • "Dialing" should be set to "Tone" unless otherwise instructed to use "Pulse"
    • "Sound" is handy to leave on, as you will get audible feedback if the connection does not work properly
    • "Show modem status in menu bar" puts a handy menu up near the clock at the top of the screen which will let you connect and disconnect

    Configure the Modem settings according to the instructions above

That's it, you're done! Just press "Apply Now" to save the changes you have made. For more information about Mac OS X please see the help documentation found within the help menu at the top of the screen.
